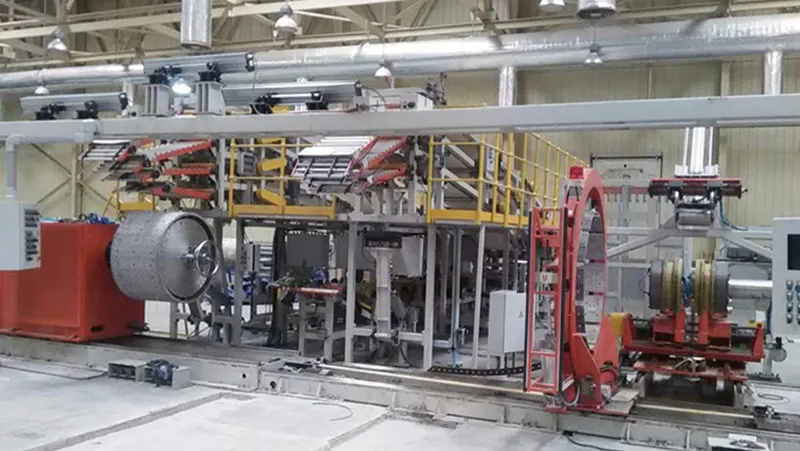

Aircraft Radial Tyre Building Machine
Aircraft tyres work under far more demanding conditions than ordinary tyres, which makes control during the building stage especially important. Our aircraft radial tyre building machines build radial aircraft tyres before curing through a controlled process in which the required components are assembled step by step, while PLC control makes operation, monitoring, alarms, and communication easier to manage. These tyre building machines include a safety control system designed in accordance with CE requirements.
Technical Specifications
First Stage
| Building Drum Diameter (mm) | 510–650 | 500–720 |
| Building Drum Width (mm) | 500–1000 | 550–1100 |
| Applicable Bead Diameter (inch) | 18"–21" | 18"–23" |
Second Stage
| Building Drum Width Range (mm) | 150–1000 | 400–1200 |
| Range (mm) | ||
| Belt Drum Diameter (mm) | 770–1410 | 660–1450 |
| Belt Layer Width (mm) | 450 | 450 |
| Applicable Bead Diameter (inch) | 18"–21" | 18"–23" |
