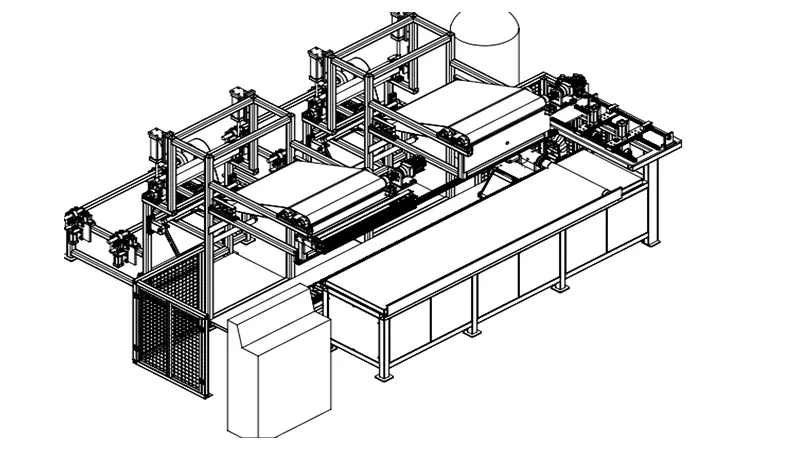

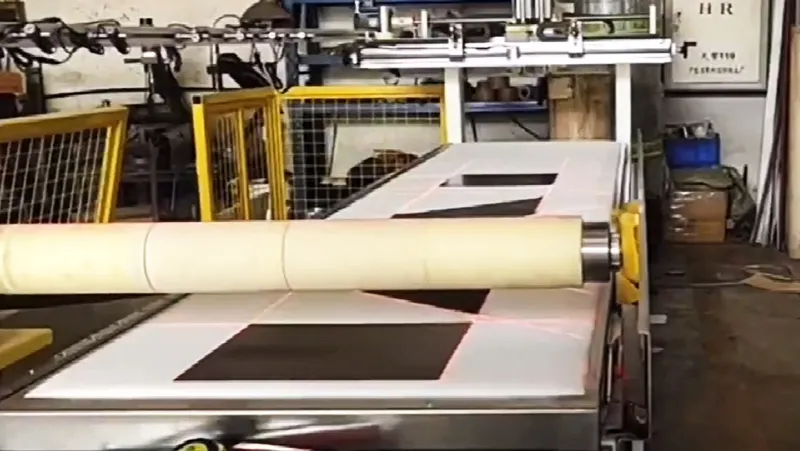

Sleeve air spring building machines are designed to form sleeve-type rubber air springs through an integrated material preparation and forming process. The sleeve production process combines automatic cord fabric feeding, rubber sheet feeding and cutting, and sleeve forming units, which work together to prepare the required layers and shape the sleeve air spring body.

• Machine Dimensions: 4000 × 3500 × 1900 mm (L × W × H)
• Applicable Product Range: Air spring diameter of 60–110 mm, with a maximum forming width of 700 mm
• Total Power of Forming Line: 14 kW
• Fixed-Length Feeding Accuracy: ±3 mm
• Production Rate: The automatic process can complete up to 2 air springs per minute
