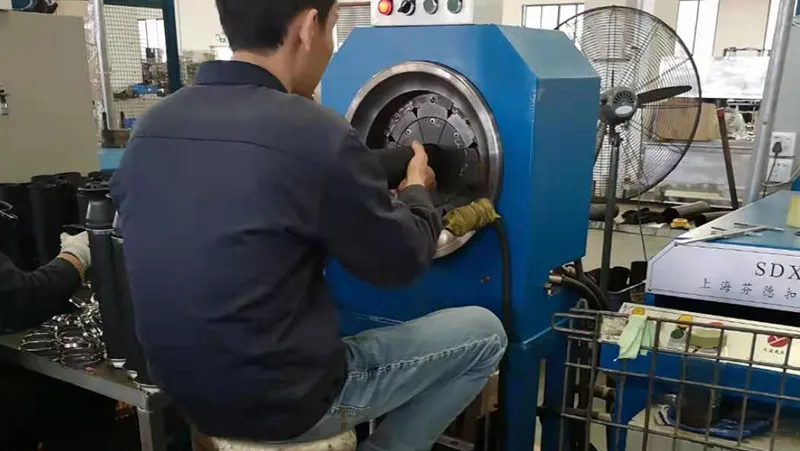

Air Spring Crimping Press
Sleeve Air Spring Assembling
Sleeve air spring crimping presses feature a user-friendly operating interface for setting and monitoring the crimping process. The interface allows operators to set various crimping parameters, such as pressing pressure, crimping size, and holding time. It also records the number of completed operations and provides user permission settings for better production management.
Technical Specifications
- Overall Dimensions (W × D × H): 800 × 800 × 960 mm
- Max.Crimping Force: 200 T
- Max. Crimping Size: ≤120 mm
- Crimping Stroke: ≥40 mm (Cylinder Stroke)
- Max. System Pressure: 31.5 MPa
- Machine Power: 3 kW
- Machine Configuration: Vertical Type
- Power Supply: 380–440 V, 50–60 Hz
