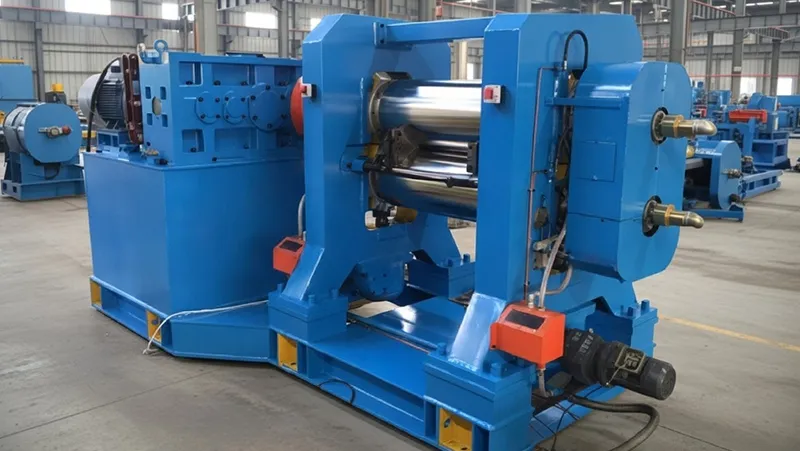

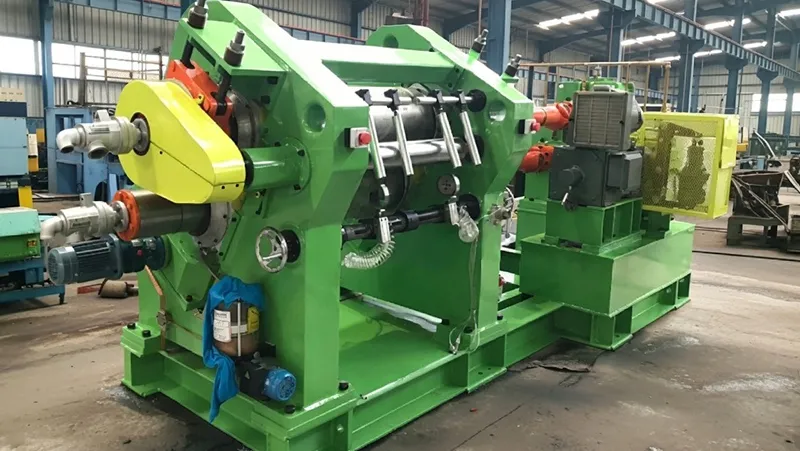

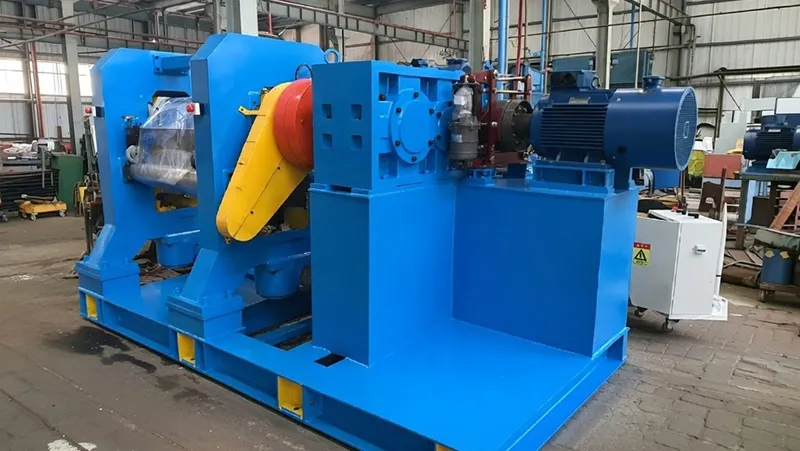

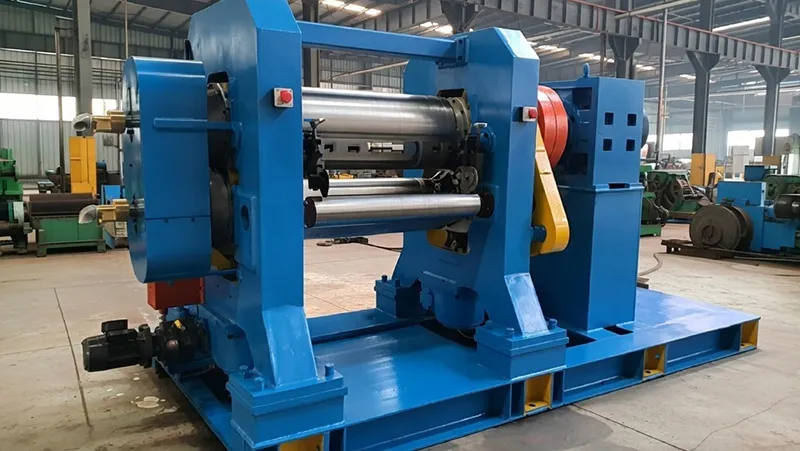

2-Roll Calender

2-Roll Calender
  • 2-Roll Calender
  • 2-Roll Calender
  • 2-Roll Calender
  • 2-Roll Calender
  • 2-Roll Calender
Leave a Message

2-roll calenders are commonly used when rubber compounds need to be formed into continuous sheets for tyres, conveyor belts, rubber sheet stock, and similar products. As the rubber goes through the two-roll structure, it is pressed and shaped to reach the required dimensions for the next production stage. 2-roll calenders are suitable for regular rubber sheeting work that require a steady process and consistent sheet quality.

Technical Specifications
Roll Diameter × Roll Length (mm) Middle Roll Linear Speed (m/min) Min. Calendered Product Thickness (mm) Calendering Width (mm) Motor Power (kW) Overall Dimensions (L × W × H) (mm) Weight (t)
360 × 900 1.5–15 ≥ 0.20 700 40 5600 × 1350 × 2000 8
450 × 1100 1.5–15 ≥ 0.20 900 45 5800 × 1400 × 2140 10
450 × 1400 1.5–15 ≥ 0.20 1200 55 7000 × 2100 × 3000 12
560 × 1600 2–20 ≥ 0.20 1400 75 6400 × 2300 × 3000 25
610 × 1730 2–20 ≥ 0.20 1500 90 6700 × 2400 × 3100 45
660 × 2030 2–20 ≥ 0.20 1800 110 7500 × 2500 × 3700 80
710 × 2600 2–20 ≥ 0.20 2400 132 8880 × 3120 × 4040 95
820 × 3000 2–20 ≥ 0.20 2800 160 9700 × 3000 × 4340 158
