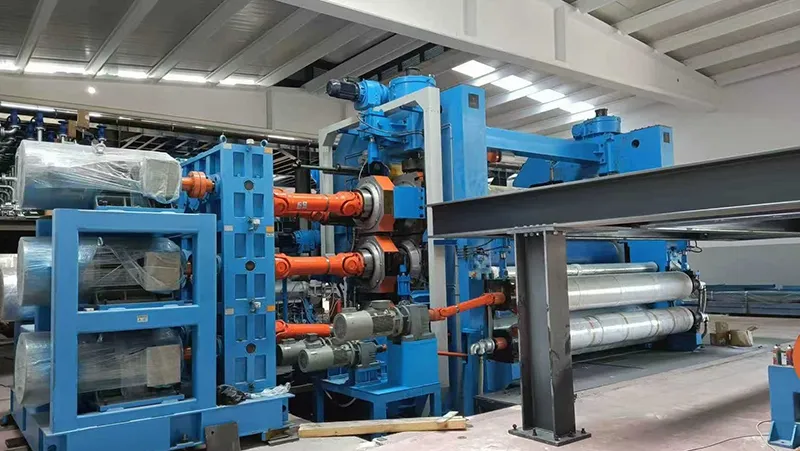

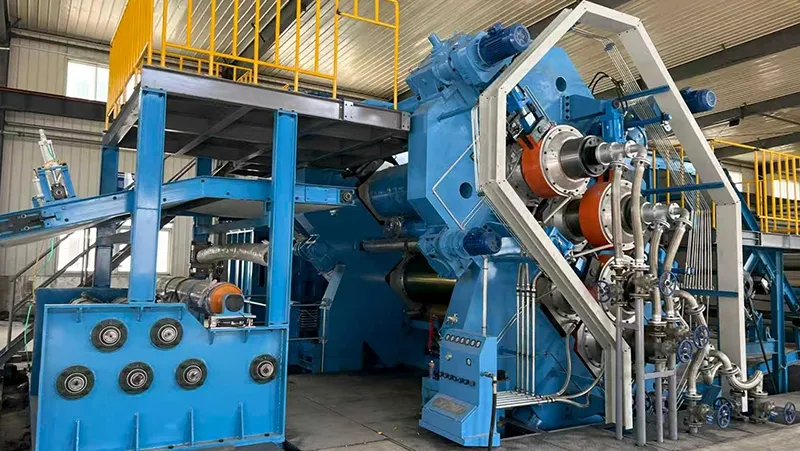

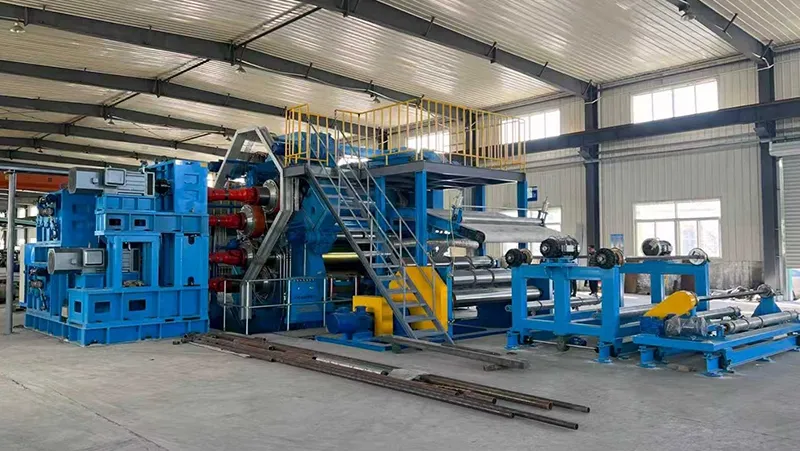

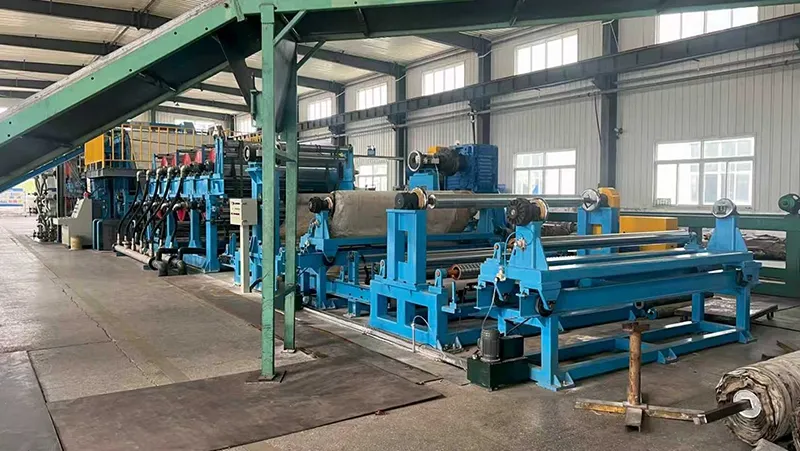

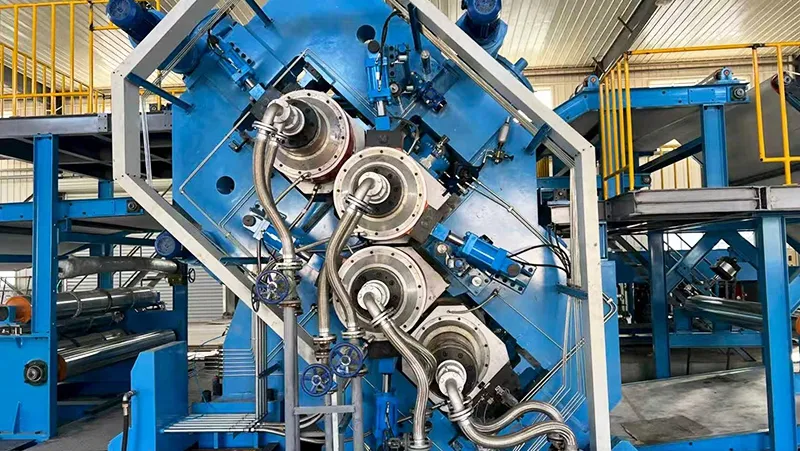

4-Roll Calender
  • 4-Roll Calender
  • 4-Roll Calender
  • 4-Roll Calender
  • 4-Roll Calender
  • 4-Roll Calender
Leave a Message

Besides producing continuous rubber sheets, 4-roll calenders can also handle processes where rubber needs to be combined with fabric or cord materials during production. They can also be used for production work that involves combining rubber with fabric or cord materials. The extra roll gives the calendering process more room for adjustment, which is useful when thickness, surface finish, and rubber application need to be controlled more carefully. These calenders are often used in the production of tyre components, conveyor belt materials, rubberized fabrics, and similar products.

Technical Specifications
Model Roll Diameter × Roll Length (mm) Middle Roll Linear Speed (m/min) Min. Calendered Product Thickness (mm) Calendering Width (mm) Motor Power (kW) Overall Dimensions (L × W × H) (mm) Weight (t)
XY-4F1120 360 × 1120 2–20 ≥ 0.20 900 55 6040 × 2100 × 1625 13
XY-4F1220 400 × 1220 3–30 ≥ 0.20 1000 22 × 4 5528 × 3300 × 3600 25
XY-4F1400 400 × 1400 2.5–25 ≥ 0.20 1200 75 6250 × 21850 × 2490 18
XY-4F1250 450 × 1250 3.5–35 ≥ 0.20 1000 37 × 4 6025 × 3300 × 3800 30
XY-4F1250 510 × 1250 3.5–35 ≥ 0.20 1000 37 × 4 6025 × 3300 × 3800 33
XY-4F1600 560 × 1600 3.5–30 ≥ 0.20 1400 144 6270 × 2960 × 4100 45
XY-4F1730 610 × 1730 5–50 ≥ 0.20 1500 75 × 2 / 90 × 2 8010 × 4738 × 4837 65
XY-4F1830 610 × 1830 6–60 ≥ 0.20 1600 67 × 4 6750 × 3040 × 1743 68
XY-4F2030 660 × 2030 5–50 ≥ 0.20 1800 110 × 4 8850 × 5080 × 5210 73
XY-4F2300 710 × 2300 5–50 ≥ 0.20 2000 132 × 4 8850 × 5050 × 5210 82
XY-4F2500 760 × 2500 5–50 ≥ 0.20 2200 160 × 4 12280 × 6500 × 5900 90
XY-4F3400 900 × 3400 5–50 ≥ 0.20 3100 220 × 4 17000 × 8630 × 9350 165
