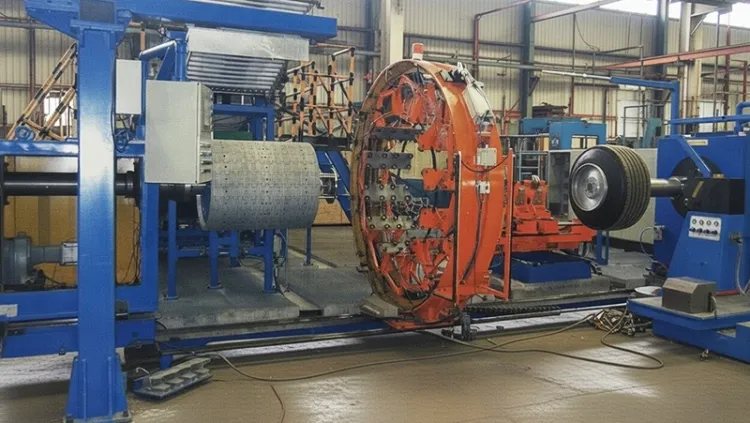

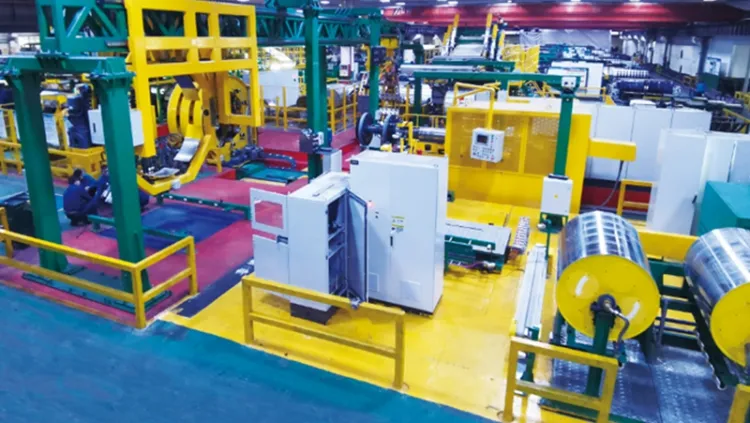

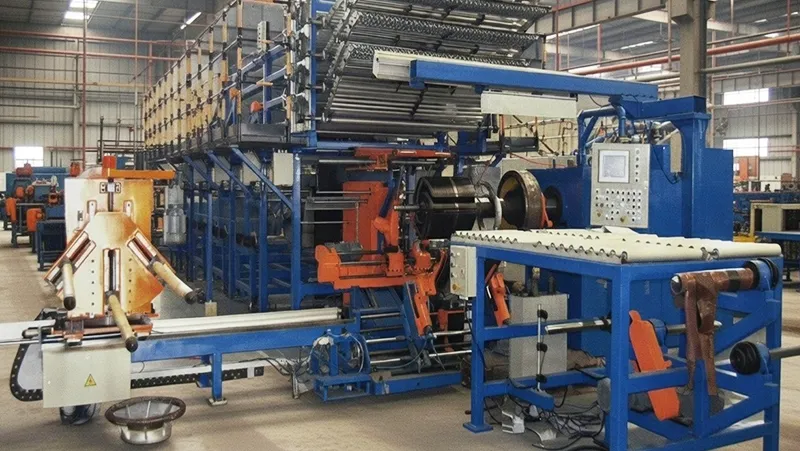

Agriculture Radial Tyre Building Machine
Video
These tyre building machines shape agricultural radial tyres before curing by applying key components such as cord ply, belt layers, and tread in the required sequence. PLC control is used for program operation, monitoring, alarms, and communication, which makes the process easier to manage during production. They are suitable for large agricultural tyres that need to work under heavy loads in demanding field conditions.
Technical Specifications
First Stage
| Building Drum Diameter (mm) | 390–560 | 420–620 | 560–840 | 686–1168 | 740–1200 | 1000–1320 | 1050–1450 | 1150–1450 |
| Building Drum Width (mm) | 360–600 | 360–600 | 400–1200 | 480–1450 | 600–1450 | 600–1600 | 600–1750 | 420–680 |
| Applicable Bead Diameter (inch) | 16"–30" | 16"–22.5" | 20"–32" | 24"–42" | 26"–42" | 38"–46" | 38"–54" | 42"–54" |
Second Stage
| Building Drum Width Range (mm) | 150–650 | 200–1500 | 200–1800 |
| Belt Drum Diameter (mm) | 700–1400 | 800–1950 | 1200–2100 |
| Belt Layer Width (mm) | 200–550 | 350–800 | 450–1350 |
| Applicable Bead Diameter (inch) | 16"–30" | 24"–42" | 38"–54" |
