Batch-Off Machine (Rubber Cooling Line)

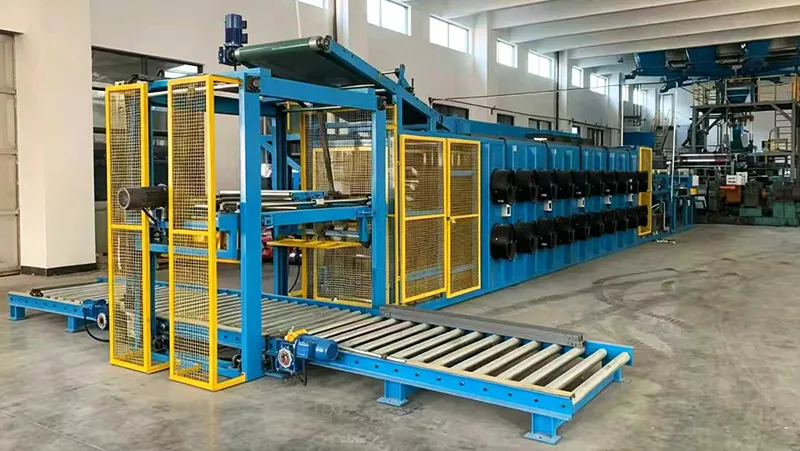

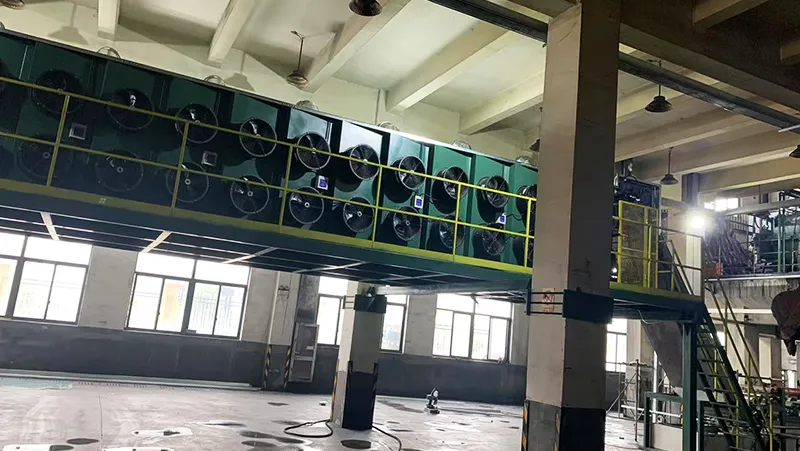

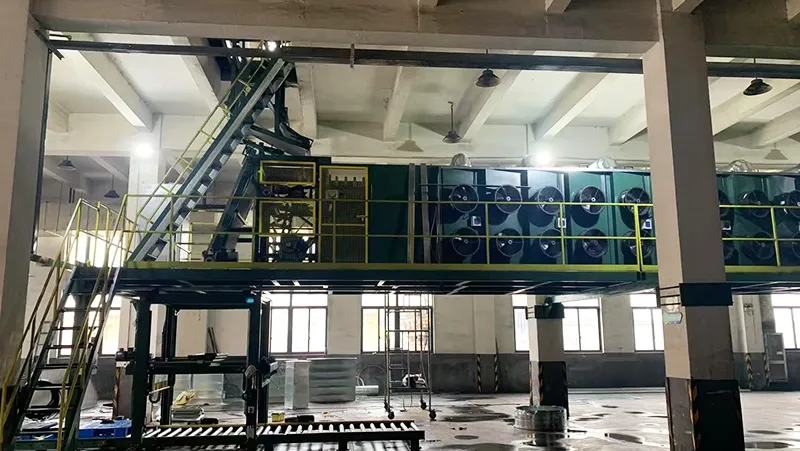

Overhead Type Batch-Off Machine
Video

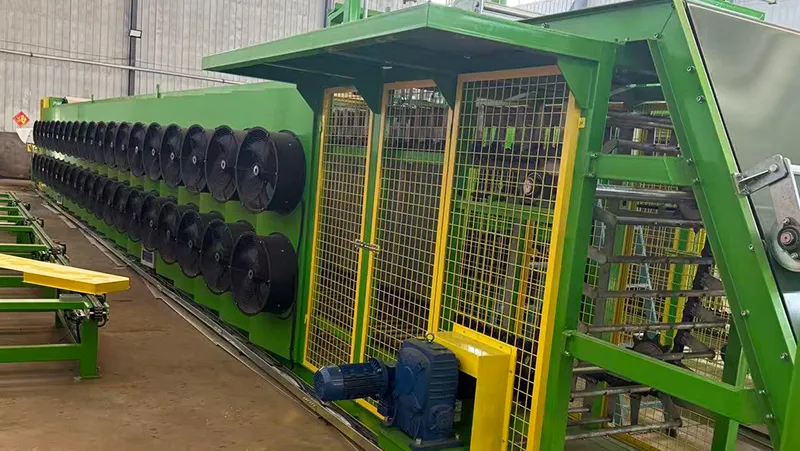

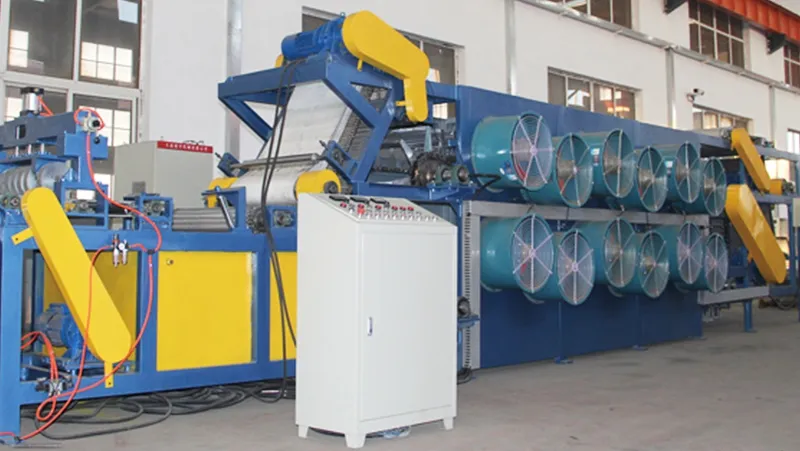

Floor Type Batch-Off Machine
Batch-off machines, also known as rubber cooling lines, are used after internal mixing to cool, convey, and prepare rubber sheets for the next production step. Rubber cooling lines usually covers processes such as sheet take-off, printing, slitting, conveying, release agent dipping, lifting, cooling, cutting, and stacking.
Technical Specifications
| Model | |||
| Rubber Sheet Width (mm) | 600 | 800 | 900 |
| Sheet Thickness (mm) | 4–12 | 4–12 | 4–12 |
| Max. Line Speed (m/min) | 35 (variable frequency speed control) | 40 (variable frequency speed control) | 45 (variable frequency speed control) |
| Hanging Rod Spacing (mm) | 100–150 (usually 101.6 or 127) | 100–150 (usually 101.6 or 127) | 100–150 (usually 101.6 or 127) |
| Hanging Length | According to customer requirements | According to customer requirements | According to customer requirements |
| Rubber Storage Capacity | According to customer requirements | According to customer requirements | According to customer requirements |
| Cooling Type | Air cooling (low-noise axial flow fans) | Air cooling (low-noise axial flow fans) | Air cooling (low-noise axial flow fans) |
| Fan Quantity | 8–14 | 14–52 | 24–64 |
| Sheet Temperature After Cooling | 5°C above ambient, max. 40°C | 5°C above ambient, max. 40°C | 5°C above ambient, max. 40°C |
| Hanging Rod Operating Mode | Continuous or step | Continuous or step | Continuous or step |
| Machine Layout | Floor-mounted or overhead | Floor-mounted or overhead | Floor-mounted or overhead |
Features

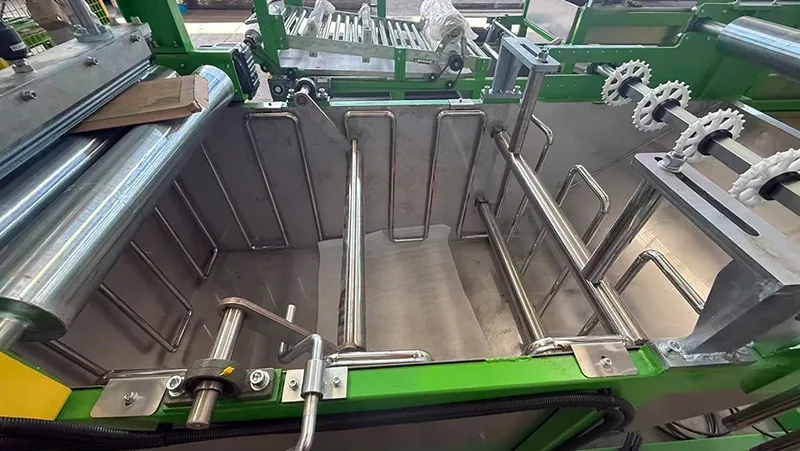

- Equipped with large release agent dipping tanks, combined with circulating cooling water to help improve the cooling effect on the rubber sheet.
- Batch-off machines can either cut and stack the sheets or continuously stacking rubber on pallets according to different production needs.
- Variable frequency speed control and PLC automation help keep operation more stable, with both floor type and overhead type structures available.
- The modular structure design helps simplify transport and installation.
