Twin Screw Extruder
(Sheet Preforming Machine)
Twin screw extruders are used in downstream of the internal mixer to sheet plasticized rubber, masterbatch and final batch compound continuously. TY series twin screw extruders also include a rubber straining function to help remove impurities during extrusion.

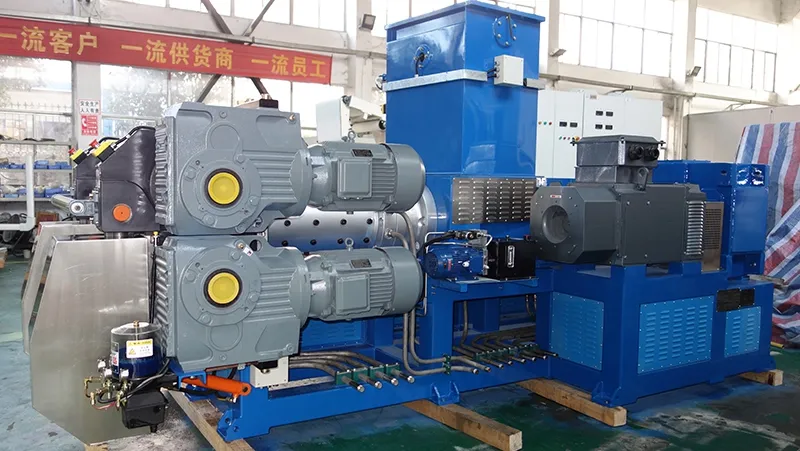

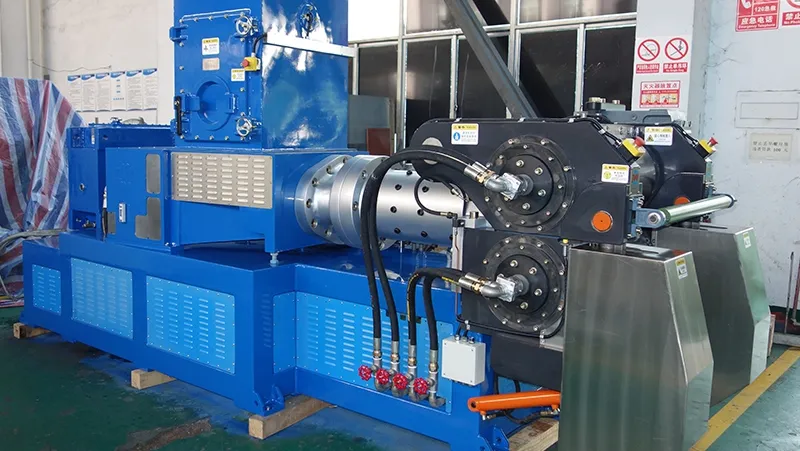

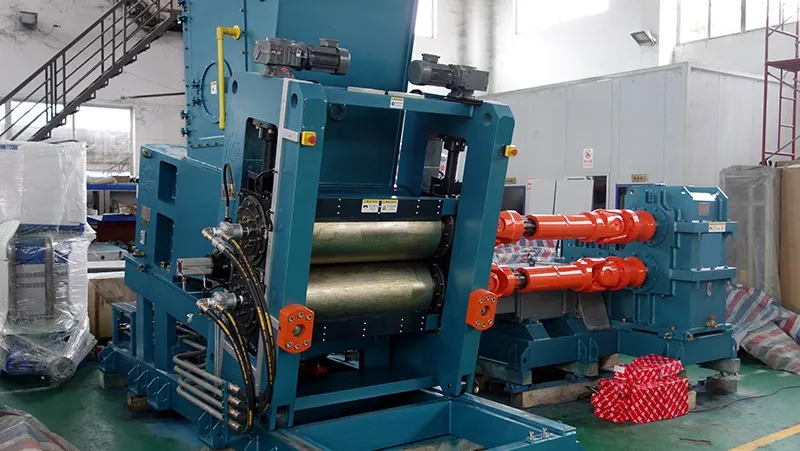

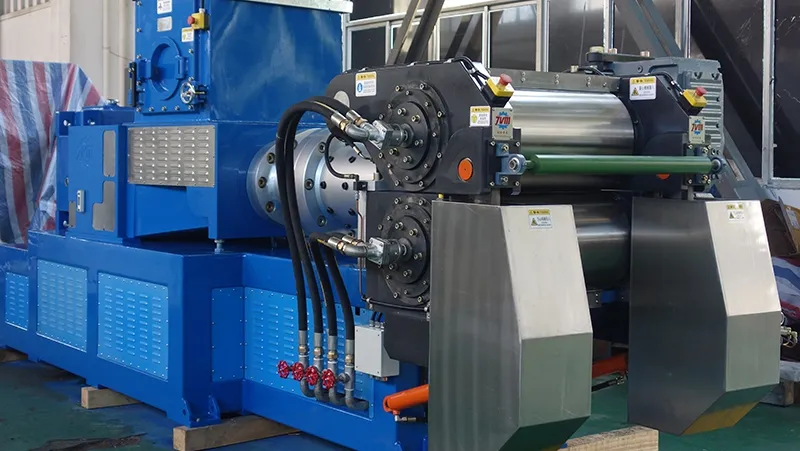

T Series Twin Screw Extruder with Sheeting Section
Video
Technical Specifications
| Model | |||||||||
| Applicable Internal Mixer (L) | 45-80 | 90-132 | 150-160 | 180-225 | 255-320 | 370-430 | 580 | 650 | |
| Output (t/h) | 1.5 | 3 | 5 | 7 | 9 | 12 | 16 | 20 | |
| Sheeting Section | Stock Guide Width (mm) | 550 | 700 | 800 | 1000 | ||||
| Roller Diameter (mm) | 310 | 310 | 380 | 400 | 410 | 510 | 610 | 710 | |
| Roller Width (mm) | 650 | 700 | 800 | 850 | 1000 | 1050 | 1200 | 1400 | |
| Rubber Sheet Thickness (mm) | 6–10 | ||||||||

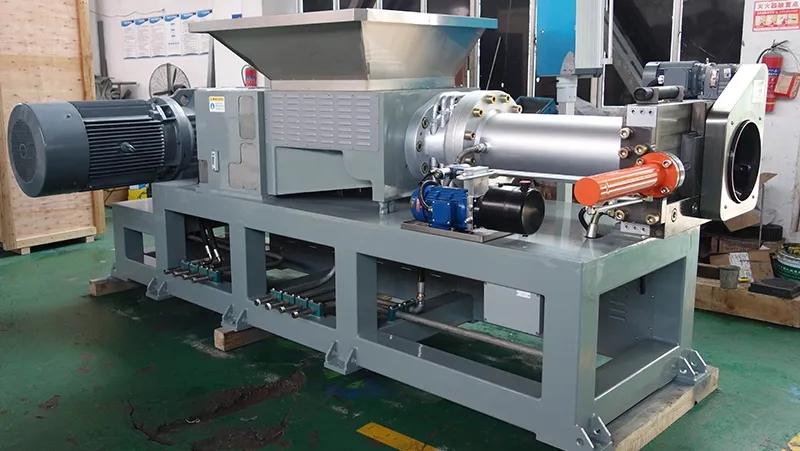

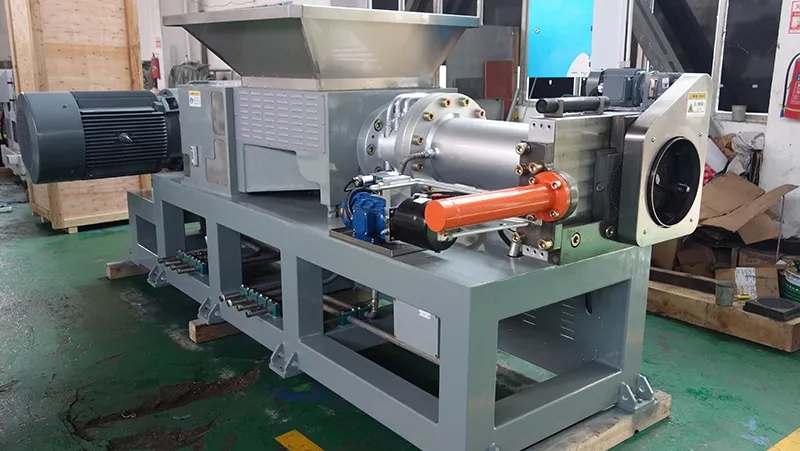

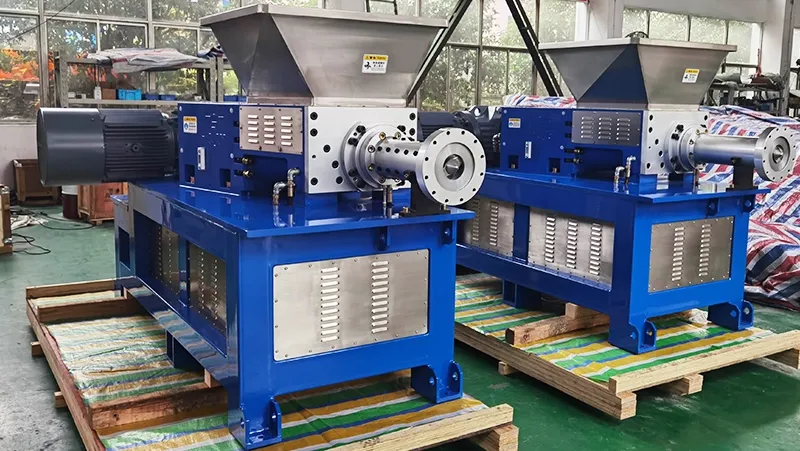

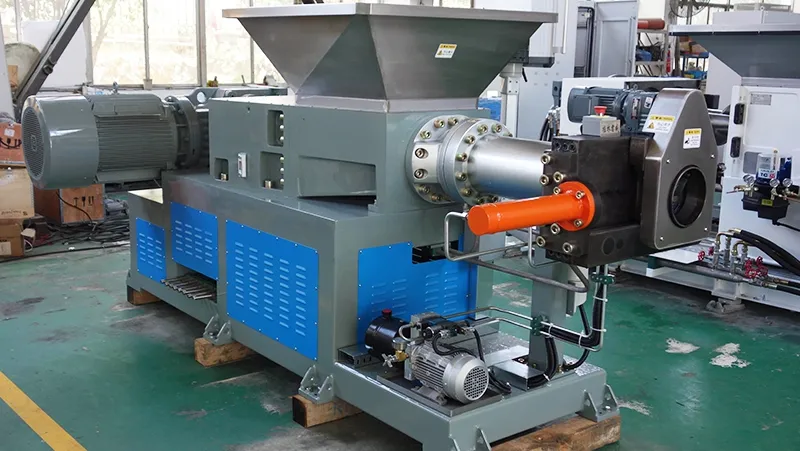

TY Series Twin Screw Extruder
Video
Technical Specifications
| Model | |||||||||
| Applicable Internal Mixer (L) | 35 | 55 | 75 | 110-160 | 200 | 255 | 270 | 370 | 430 |
| Screw Diameter (mm) | 75 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 |
| When paired with the right extrusion die, this extruder can be used for additional rubber mixing, rubber straining and sheeting, or the extrusion of different rubber products. | |||||||||
