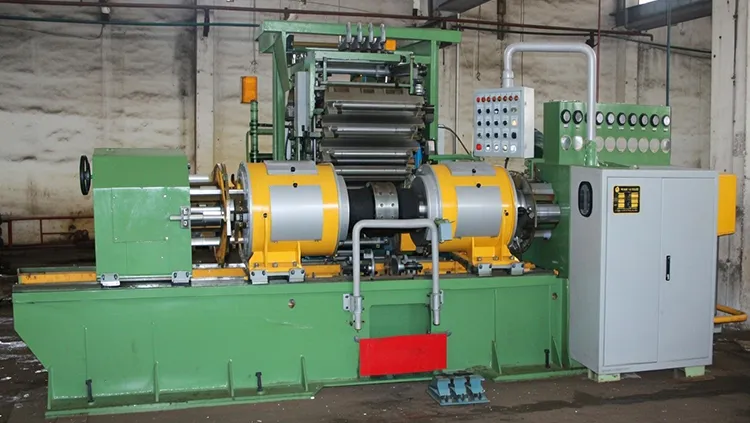

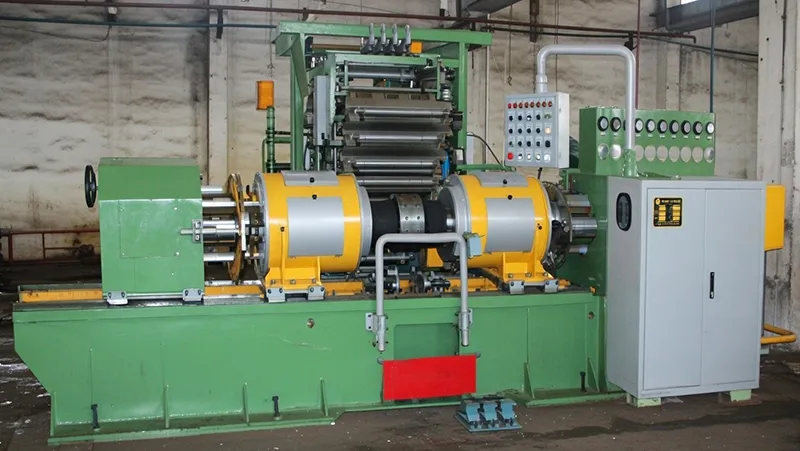

Motorcycle Tyre Building Machine
(Bladder Turn Up)
Video
Bladder turn up motorcycle tyre building machines are used to build motorcycle tyre, especially for tubeless motorcycle tyres. During tyre building, the components are laid onto the drum, after stitching the bladder turn-up mechanism helps fold the carcass ply around the bead area as the tyre structure is formed. The machine adopts fingers turn down and bladder turn up.
Technical Specifications
| Model | |||
| Applicable Tyre Size (inch) | 8–14" | 15–18" | 19–21" |
| Bead Diameter Range (mm) | 180–450 | 130–450 | 130–450 |
| Main Shaft Center Height (mm) | 900 | 900 | 940 |
| Main Shaft Speed (r/min) | 35 / 70 / 200 | 35 / 70 / 200 | 35 / 70 / 200 |
| Overall Dimensions (L × W × H) (mm) | 5780 × 1500 × 2030 | 5925 × 1600 × 2030 | 5925 × 1600 × 2030 |
| Weight (kg) | 5200 | 6200 | 6200 |
