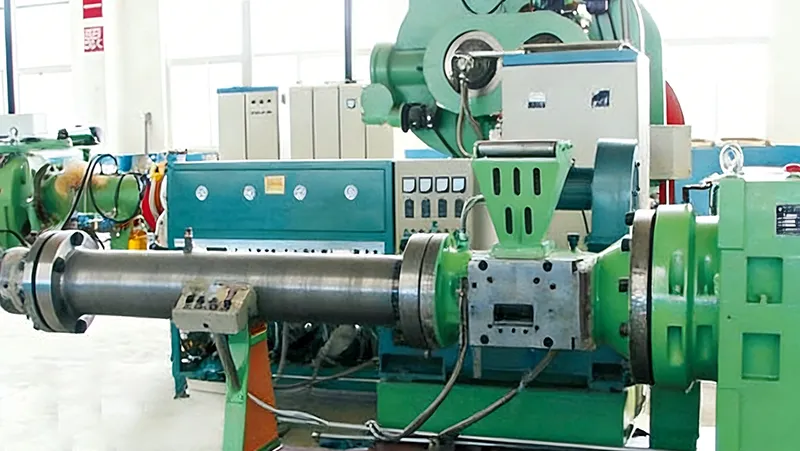

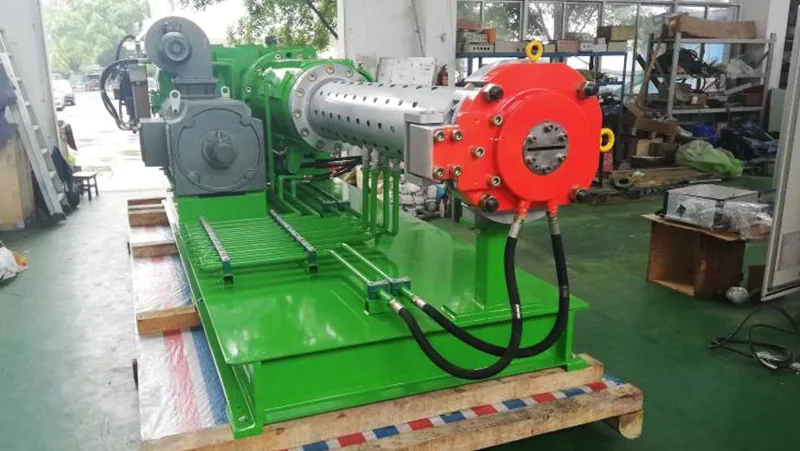

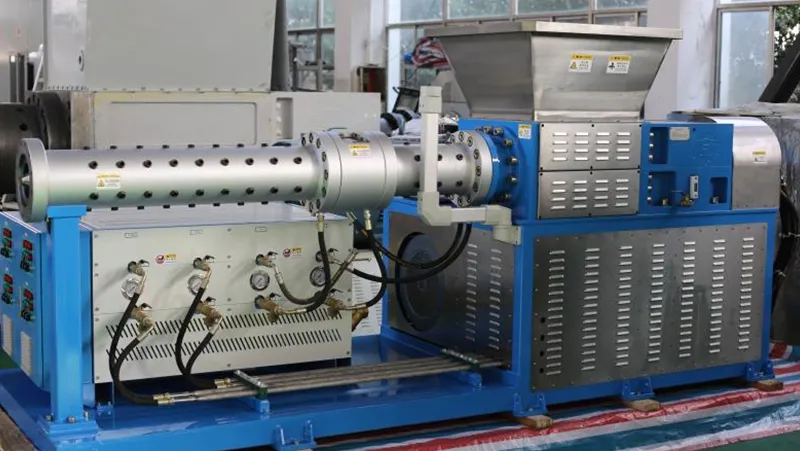

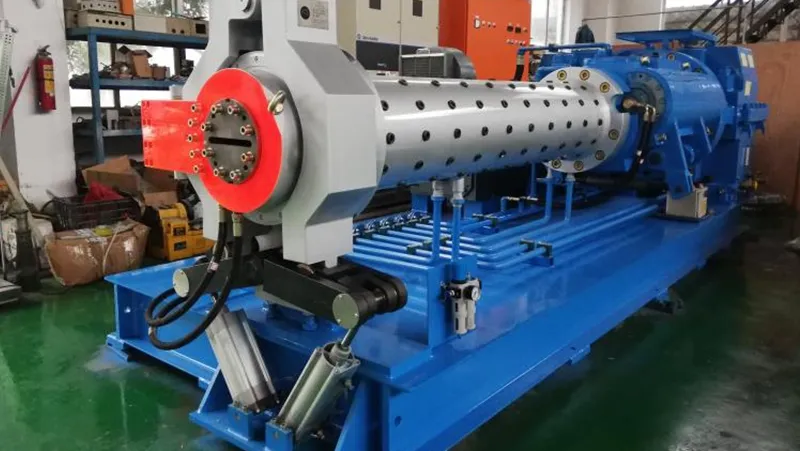

Cold Feed Extruder, Rubber Extrusion Machine
Video
Cold feed extruders are widely used for extruding semi-finished rubber products such as tyre tread, inner tubes, cables, rubber strips, and bladder.
Technical Specifications
| Screw Diameter (mm) | ||||
| L/D Ratio | 15/1 | 12/1 | 12/1 | 16/1 |
| Max. Screw Speed (r/min) | 75 | 60 | 50 | 45 |
| Max. Output (kg/h) | 60 | 260 | 500 | 900 |
| Motor Model | Y180-4 | Y280S-6 | Z4-225-11 | Z4-250-31 |
| Motor Power (kW) | 22 | 45 | 75 | 132 |
| Center Height (mm) | 1200 | 900 | 950 | 950 |
| Cooling Water Pressure (MPa) | ≥0.2 | ≥0.2 | ≥0.2 | ≥0.2 |
| Overall Dimensions (L × W × H) (mm) | 2700×780×1560 | 2280×1000×1370 | 2789×1318×1706 | 6000×930×1545 |
| Weight (kg) | 2000 | 2500 | 4850 | 9000 |
Features
- The barrel is designed with a spiral channel for better heat transfer, and a feed roller in the feeding section helps improve material intake.
- Both the screw and the barrel liner are made of nitrided steel for better strength and wear resistance. The screw structure adopts a double-head main and auxiliary thread structure, which has excellent plasticizing and self-cleaning capabilities.
- A hard gear reducer with forced lubrication helps keep power transmission efficient while also reducing running noise.
- Temperature in each section is controlled automatically through a hot water circulation system, making heat control more stable during extrusion.
- AC variable frequency drive or DC motor drive can be used, allowing smooth and continuous speed adjustment during operation.
