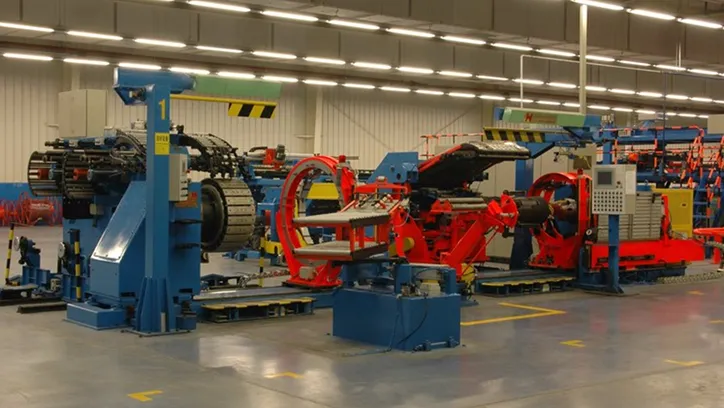

Light Truck Tyre Building Machine
All-steel LTR Tyre Building Machine
Light truck tyre building equipment is used for all-steel radial green tyres for light trucks, mainly in sizes from 15" to 20", and can also handle small-diameter 20" truck radial tyres. While tyre components are being assembled on the drum to form the green tyre before curing, the machine layout helps keep the process more stable and the control system makes daily operation and adjustment easier to manage.
Technical Specifications
| Bead Diameter | 15"–20" |
| Shaped Carcass Outside Diameter (mm) | 730–1040 |
| Transfer Ring Diameter (mm) | 1060 |
| Applicable Tyre Sizes | 7.5R15LT–10.00R20 |
| Belt Package Drum Diameter (mm) | 658–980 |
| Belt Package Drum Width (mm) | 330 |
| Belt Package Drum Speed (r/min) | 0–25 |
| Building Drum Speed (r/min) | 0–150 |
| Building Drum Center Height (mm) | Approx. 1050 |
