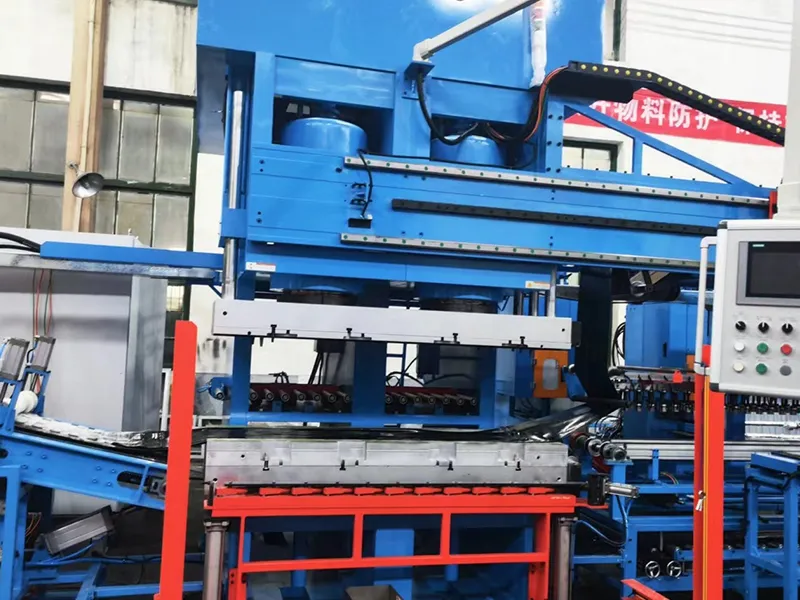

Rubber Pre-building Machine
To improve production efficiency before curing, rubber track pre-building machines are used to press together the bottom rubber sheet, iron cores, and middle rubber sheet into a preformed track body. Once prepared, the preformed rubber tracks can be transferred directly to the curing press, which helps reduce press operation time.

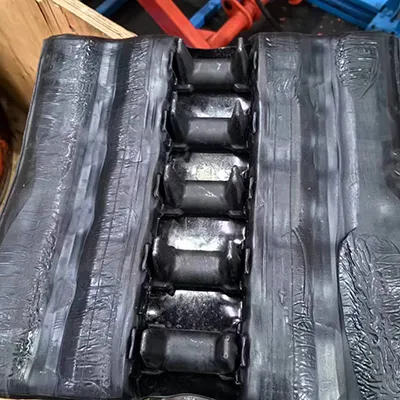

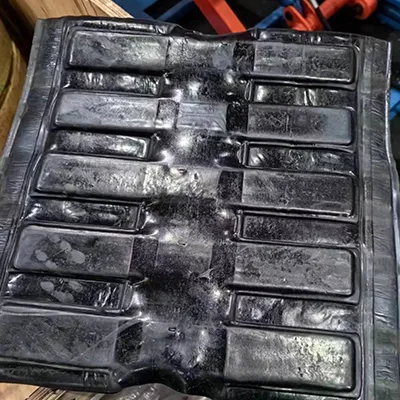

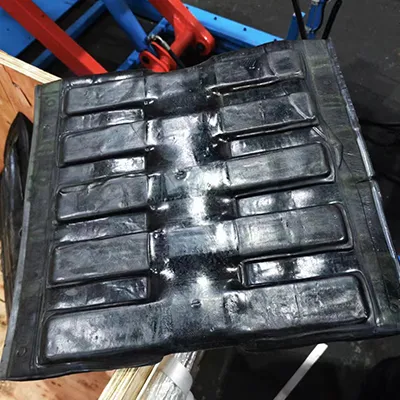

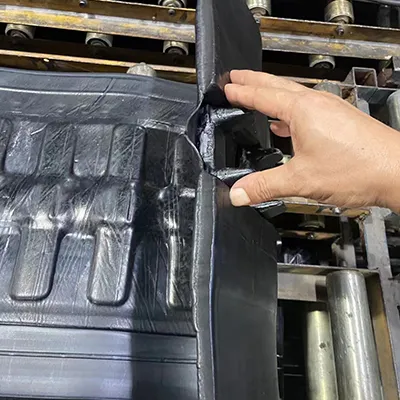

Samples
Technical Specifications
| Clamping Unit | ||
| Mould Clamping Force | kN | 3600 |
| Hydraulic Pressure | MPa | 20 |
| Mould Clamping Cylinder Diameter | mm | 380 |
| Number of Mould Locking Cylinders | pcs | 2 |
| Max. Mould Clamping Stroke | mm | 600 |
| Max. Daylight Opening | mm | 700 |
| Min. Mould Thickness | mm | 100 |
| Press Platen Size | mm | 2000 × 700 |
| Preformed Rubber Track Width | mm | 300–500 |
Features

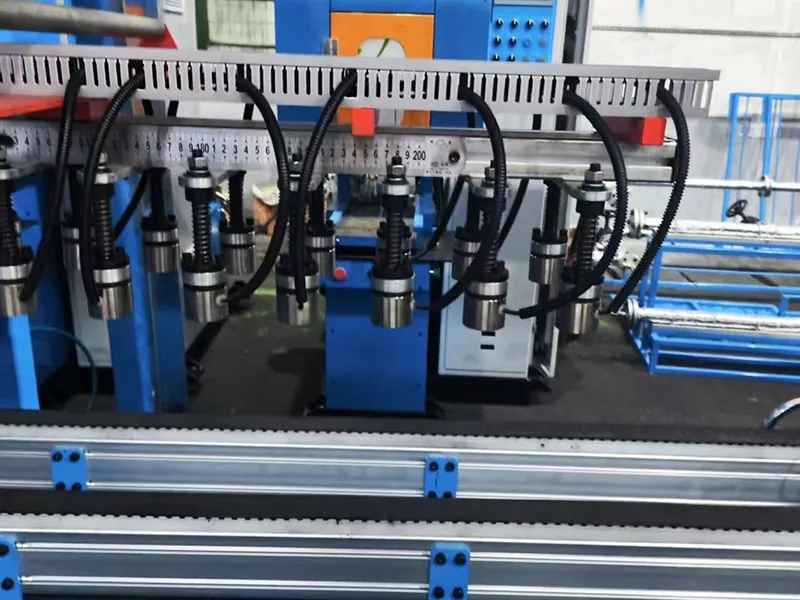

- Iron cores are handled automatically, including gripping, spacing, and conveying.

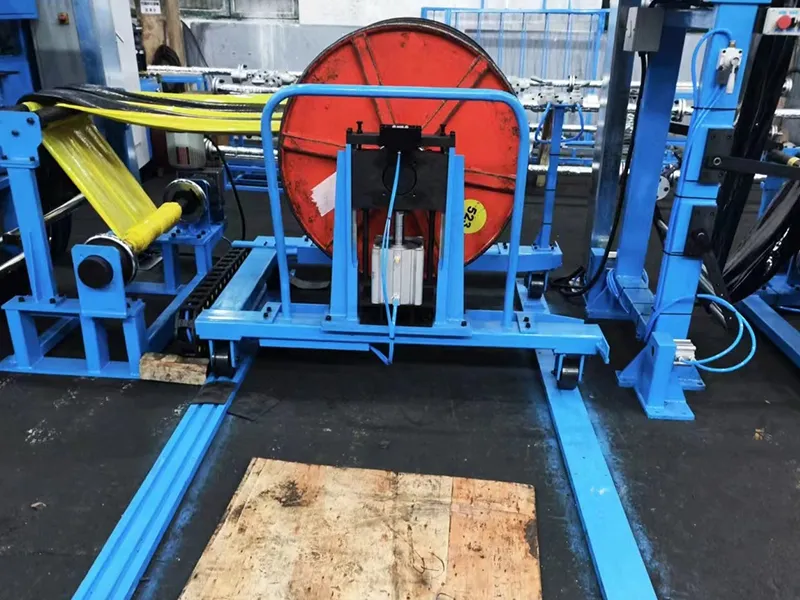

- Rubber sheets are unwound automatically during the preforming process.
- Rubber sheets and iron cores are pressed together automatically to form the prebuilt track body.
- The preformed rubber tracks are cut automatically after pressing.

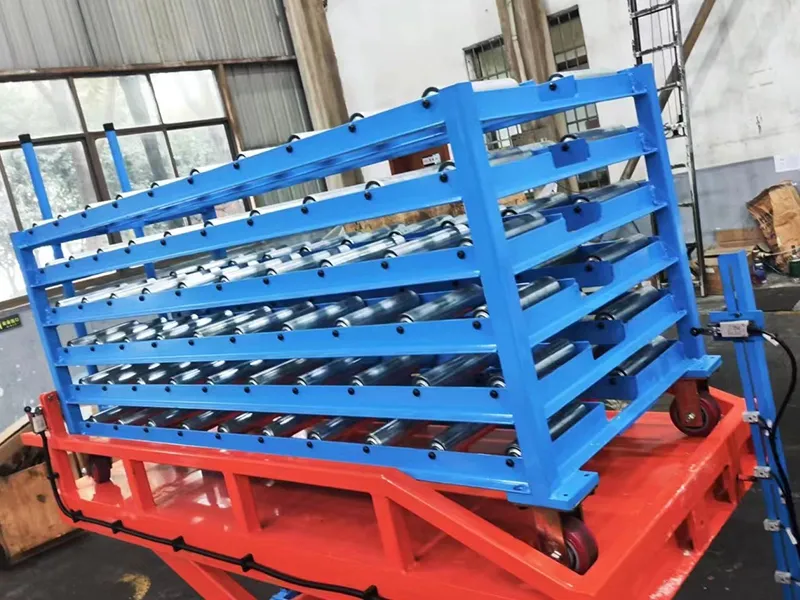

- Weighing and conveying are also carried out automatically after preforming.
