Rubber Track Curing Press
Video

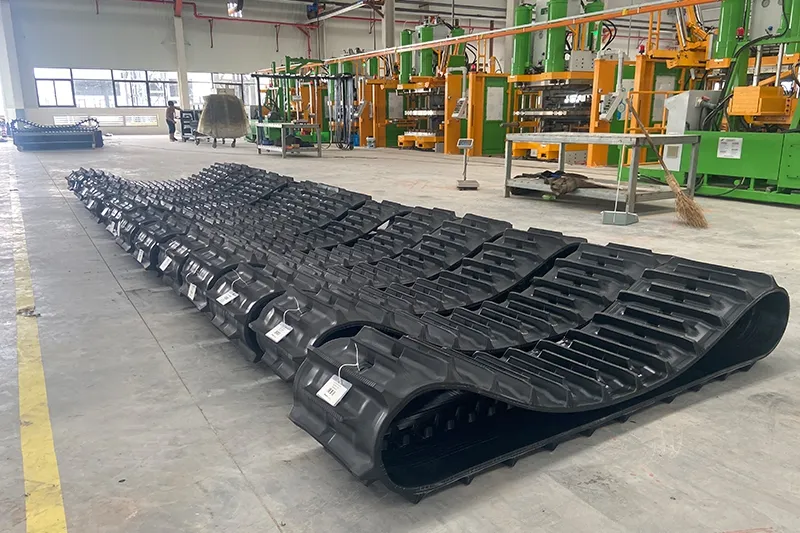

Rubber track curing presses are used in rubber track production to vulcanize tracks for tracked vehicles such as excavators, loaders, and similar equipment. Controlled heat and pressure during curing are important for the final strength, durability, and consistency of the finished track.
Equipment Types
- Multi-section curing presses

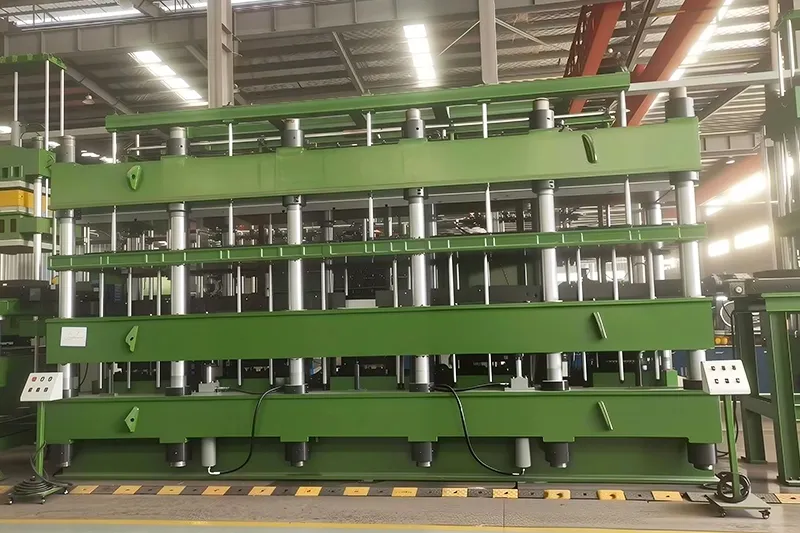

- Flat track curing presses and jointing presses
- Segmented mould curing presses

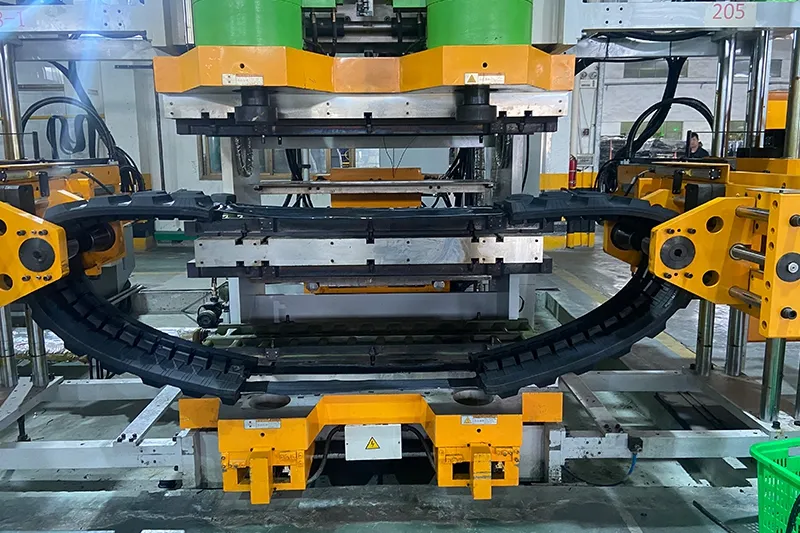

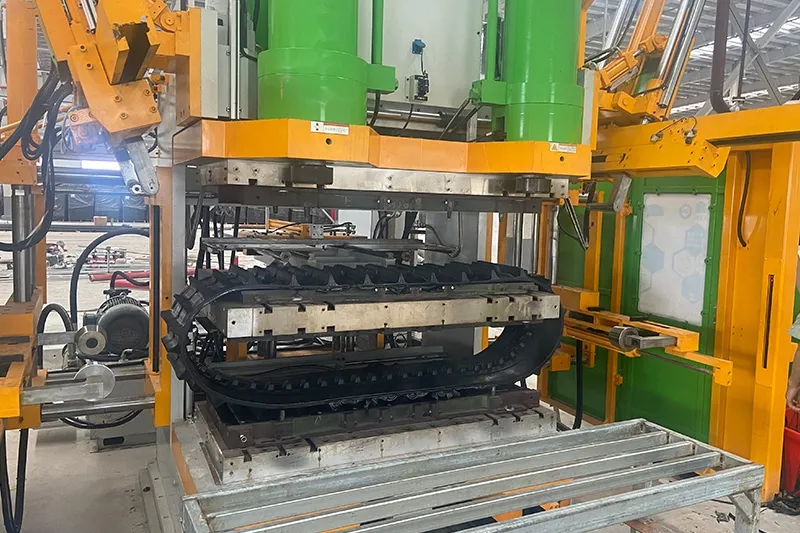

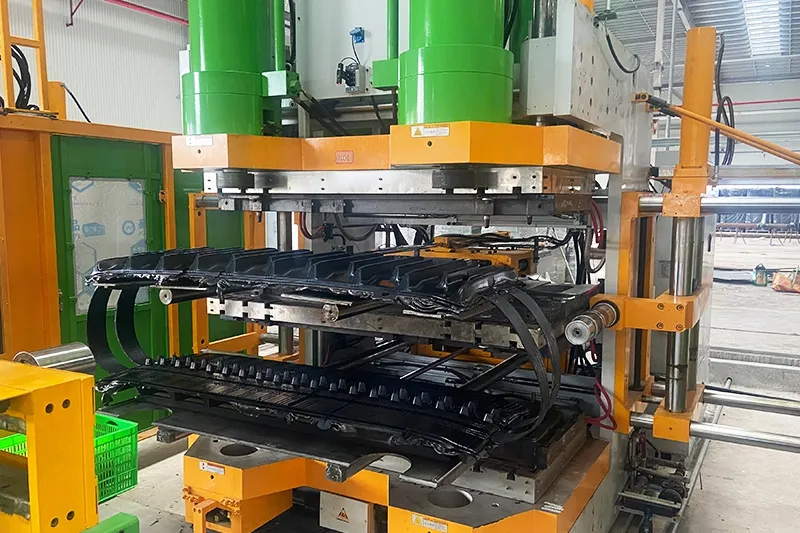

Multi-Section Rubber Track Curing Press
| Model | ||||||
| Clamping Force (kN) | 1600 | 2800 | 3600 | 4800 | 6500 | 9000 |
| Heating Plate Size (mm) | 1100 × 600 | 1500 × 640 | 1700 × 750 | 1960 × 800 | 2100 × 1100 | 2250 × 1050 |
| Heating Plate Spacing (mm) | 520 | 550 | 550 | 550 | 900 | 700 |
| Track Circumference Range (mm) | 2560–3520 | 3780–4880 | 4600–6200 | 4600–6400 | 5900–8500 | 5900–8300 |
| Max. Track Width (mm) | 400 | 450 | 550 | 550 | 800 | 914 |
| System Pressure (MPa) | 21 | 21 | 21 | 21 | 21 | 21 |
