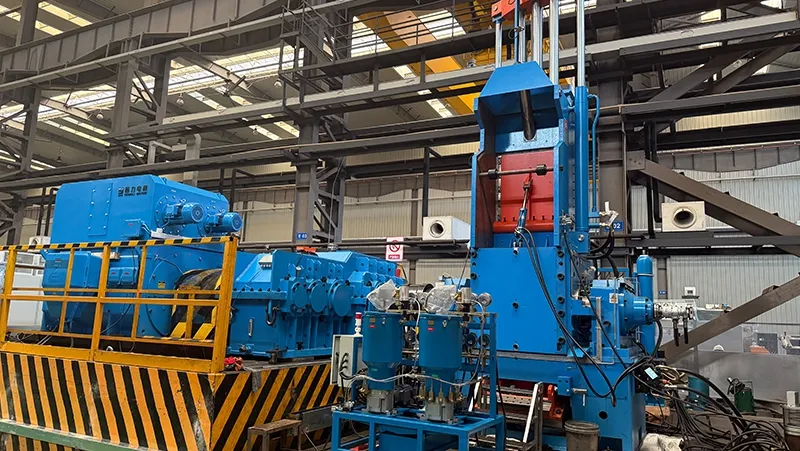

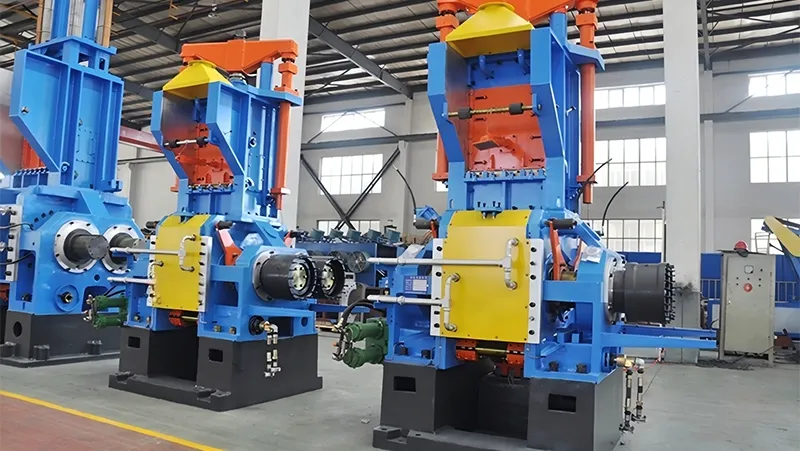

Tangential Type Internal Mixer
Tangential mixers are designed for mixing a wide range of rubber compounds. Their elliptical tangential rotor creates strong shearing action inside the chamber, allowing the materials to be worked more thoroughly and mixed more evenly.
Technical Specifications
| Model | |||||||||||
| Total Mixer Volume (L) L | 1.5 | 56 | 147 | 255 | 243(4wing) 250(ZZ-2) | 278(ZZ-2) 257(4wing) 276(NST) | 412(ZZ-2) 397(4wing) | 416(NST) | 578(NST) | 699(4wing) | |
| Filling Factor (%) | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | 0.7~0.75 | 0.75 | 0.7~0.75 | 0.7~0.75 | 0.7~0.75 | |
| Rotor Speed (r/min) r/ min | 8-80 10-100 | 6-60 | 6-60 | 4-40 5-50 6-60 | 4-40 5-50 6-60 | 4-40 5-50 6-60 | 6-60 | 6-60 | 5-50 6-60 | 5-50 6-60 | |
| Specific Ram Pressure (MPa) | 0.57 | 0.59 | 0.59 | 0.58 | 0.58 | ~0.6 | 0.6 | 0.6 | 0.58 | 0.58 | |
| Max. Production Capacity (t/h) | 0.3 | 1.01 | 2.64 | 4.5 | 4.5 | 5.3~6 | ~7.4 | 8.6~9.2 | ~10 | ~12 | |
| Cooling Water Pressure (MPa) | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | |
| Cooling Water Consumption (m³/h) | 5 | 20 | ~30 | ~50 | ~50 | ~50 | ~70 | ~90 | ~100 | ~120 | |
| Main Motor Power (kW) | DC | 22, 30 | 280 | 750 | 1250 2×750 2×660 2×900 | 1000, 1100 1250, 1500 2×750, 2×900 | 1250, 1500 2×750 | 2×1250 | 2×1250 | 2×1250 2×1500 | 2×1500 |
| AC | 22, 30 | 280 | 750 | 1120, 1250 1500, 1800 | 1000, 1120 1250, 1500 | 1120, 1250 1500, 1800 | 2300/2500 | 2300/2500 | 2500/3000 | 3000/3600 | |
| Overall Dimensions | Length (mm) | 2030 | 3500 | 4600 | 5030 | 4960 | 5320 | 5800 | 5800 | 5980 | 6250 |
| Width (mm) | 1020 | 2850 | 3600 | 3730 | 3550 | 3800 | 4340 | 4680 | 5600 | 5910 | |
| Height (mm) | 1773 | 3380 | 5000 | 5770 | 5710 | 5693 | 6094 | 6100 | 6995 | 7050 | |
| Weight (Excluding Motor and Gearbox) t | (t) | 1.8 | 9.4 | 18 | 26/28 | 28.5 | 33 | 46 | 48 | 60 | 70 |
Features
- Wear-prone areas such as the rotors, chamber interior, and ram contact surfaces are protected with hard alloy to improve durability and reduce corrosion.
- Material can be discharged more quickly through the hydraulic drop door structure, while sealing remains reliable during operation.
- Operators can switch between manual and automatic modes through the PLC, which makes daily operation more convenient.
- The sectional chamber design makes maintenance and replacement work more convenient.
